Infortrend (ES S24F-G1840-4) 4U 24-bay 4x 8G FC ports 24x HDD 3G SAS/SATA Single RAID 2GB cache - detail

SkupinaINFORTREND
KódIF00184
PartNoESS24FG18404B-8B30
Dostupnostdo 2 týdnů
Množství
Cena bez DPH181 265  Kč
Cena s DPH219 330  Kč
Recyklační poplatekbez DPH: 12  Kč; s DPH: 15  Kč; Počítačové servery všechny druhy vyjma sálových
Cena celk. 219 345  Kč
Garance cenyNalezli jste jinde na internetu nižší cenu? Informujte nás!
Záruka36 Měsíce
Status - V ceníku
Stránka výrobcehttp://www.infortrend.com/uk/products/models/ES%20S24F-G1840

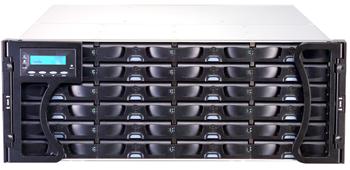

Infortrend (ES S24F-G1840-4) 4U 24-bay 4x 8G FC ports 24x HDD 3G SAS/SATA Single RAID 2GB cache
Obrázek je pouze ilustrační

Zařazení
Kategorie
   Disková pole
Výrobci
   Infortrend
Popis produktu
Fibre-SAS RAID subsystem, 4U 24-bay rack mount with single controller. Host connectivity: 8 Gb/s Fibre Channel. Drive connectivity: SAS with SAS expansion ports (SFF-8088).
MUX boards are not required in single controller model. Supports SAS and SATA-II disks drive mixing.
Rack mount kit (36") included and integrated in the subsystem carton.

Host Interface Four (4) 8Gb/s FC ports on each controller
Concurrent I/O commands
Maximum tagged command queuing: 1024

Drive Interface Twenty-four (24) 3Gbps SAS, hot-swappable drive trays
Accommodates 1-inch pitch, 3.5-inch SAS disk drives
S.M.A.R.T. support
NCQ support
Automatic bad-sector reassignment
Dedicated bandwidth to each connected drive
Drive buffer on/off switch

Controller Dual redundant (S24F-R1840) or single (S24F-G1840)
Form Factor 4U Rack-mount
RAID functionality Global, Dedicated or Enclosure hot-spare
RAID levels supported: RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
Online expansion by:
Adding new drives
Copying and replacing drives with drives of larger capacity
RAID migration
Configurable stripe size and write policy per array
Intelligent drive handling:
In degraded mode: skips irreparable blocks to continue rebuild
In normal operation: data-block verification and repair

Management Java-based SANWatch management software with multi-pathing support (EonPath)
COM1 serial port for local access to firmware-embedded utility
Automated cache flush and caching mode operation per enclosure status
GUI, Telnet, and SSH system monitoring via Ethernet
Platform-independent firmware manager
Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and MSN
LCD keypad panel for monitoring and access to all configuration options
Module status LED indicators:
Component presence detection & thermal sensors via I2C bus

Green Designs Power supplies delivering high energy efficiency
Dynamic cooling mechanism
Intelligent multi-level drive spin-down

System Components S24F-R1840
Two (2) redundant RAID controller modules
Two (2) 1GB DIMM modules, upgradable to 4GB
Three (3) redundant 405W power supply units
Two (2) redundant cooling modules
Twenty-four (24) hot-swappable drive trays with MUX kits
Two (2) pre-installed Cache Backup Modules (CBM), each including one Li-Ion battery backup unit (BBU) and one Flash Backup Module (FBM)
S24F-G1840
One (1) RAID controller module
One (1) 1GB DIMM module, upgradable to 4GB
Three (3) redundant 405W power supply units
Two (2) redundant cooling modules
Twenty-four (24) hot-swappable drive trays
One (1) optional Cache Backup Module (CBM), including one Li-Ion Battery Backup Unit (BBU) and one Flash Backup Module (FBM)

Dimensions

(without chassis ears/protrusions) 445mm (W) x 174mm (H) x 498mm (D)
Weight Net weight: 21.54 kg
Gross weight (with HDD): 61 KG
Gross weight (without HDD): 41.7kg
