EonStor S12S-J1000-G 12 bays, 2U, SAS to SAS/SATA. JBOD, Single Control. - detail

SkupinaINFORTREND
KódIF00062
PartNoESS12SJ1000G-8B32
Dostupnostdo 3-4 týdnů
Množství
Cena bez DPH73 157  Kč
Cena s DPH88 520  Kč
Recyklační poplatekbez DPH: 12  Kč; s DPH: 15  Kč; Počítačové servery všechny druhy vyjma sálových
Cena celk. 88 535  Kč
Garance cenyNalezli jste jinde na internetu nižší cenu? Informujte nás!
Záruka36 Měsíce
Status - V ceníku
Stránka výrobcehttp://www.infortrend.com/uk/Products/Families/ES

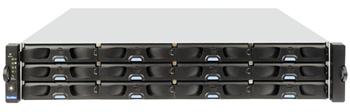

EonStor S12S-J1000-G 12 bays, 2U, SAS to SAS/SATA. JBOD, Single Control.
Obrázek je pouze ilustrační

Zařazení
Kategorie
   Disková pole
Výrobci
   Infortrend
Popis produktu
SAS JBOD subsystem, 2U 12-bay rack mount, single controller module. Two SAS ports (SFF-8470) for connecting RAID controller and chaining to the next SAS JBOD. SAS and SATA-II drives both supported. Use together with S12S-G1030 and S12S-G1033. Connecting directly to HBA/switch/hub are not supported. Redundant PSUs and redundant FANs with status LEDs (no LCD front panel).

Expansion enclosure for SAS to SAS RAID systems
SAS drives for high performance and high reliability
SATA drives for low cost and high capacity applications
Highest density, 12 drives in 2U rack space
Redundant or single JBOD controllers
Two (2) SAS 4x wide ports per controller
Diagnostics LED panel
Proprietary enclosure service via connections (in-band) with the managing RAID enclosure
Path redundancy via separate SAS domains (S12S-J1002-R)
Host-to-Drive Interface JBOD Model Corresponding
RAID Subsystem(s) Configuration Form Factor
Model Max. Connection
SAS to SAS/SATA II S12S-J1000-G S12S-G1030 4 JBODs Single Expander Controller 2U rack-mount
SAS to SAS/SATA II S12S-J1002-R S12S-R1032 3 JBODs Redundant Expander Controllers 2U rack-mount

Specifications
Host Interface
Two (2) SAS 4x wide ports per controller.
Proprietary enclosure service via in-band methodology
Drive Interface
Twelve (12) hot swappable SAS/SATA II disk drives
System Components
Redundant or single JBOD controller configurations
Fault-tolerant modules interfaced through a common backplane
Redundant, hot swappable 460W/530W power supply units
Redundant, dual-speed cooling modules
LED diagnostics panel
Management
Management of multiple enclosures via RAID firmware and/or through GUI
Module status LED indicators:
Six (6) on LED panel (1 service LED and 5 status LEDs)
Two (2) per drive tray
Three (3) per controller module (1 Ready/Failed LED and two (2) Link status LEDs)
One (1) per power supply unit
Two (2) per cooling module
Physical/Electrical
Interface
Host Interface: Eight (8) SMP PHYs interfaced through two (2) SAS 4x wide ports per controller.
Drive Interface: 3Gbps SAS/ SATA II

Power Supply Module
Specifications
Power Consumption 460W/ 530W (J1000-G/J1002-R)
Input Voltage  100VAC @ 8A/10A or 240VAC @ 4A/5A with PFC (auto-switching)
Frequency 50 to 60Hz/ 47 to 63Hz

Cooling Module
Specifications
Speed High or low rotation speed controlled by firmware
Max. Air Flow (each module) J1000-G: 1.3 m3/min (high speed); 0.9 m3/min (low speed)
J1002-R: 90CFM(high speed); 70.7CFM (low speed)

Environmental Specifications
Humidity Operating: 5% to 95% (non-condensing)
Non-operating: 5% to 95% (non-condensing)
Temperature Operating: 0° to 40°C (32°F to 104°F)
Non-operating: -40° to 60°C (-40°F to 149°F)
Altitude Operating:  Sea level to 3048m (12,000 ft.)
Non-operating: Sea level to 12,192m (40,000 ft.)

Dimensions
Dimensions With Forearm Handles
Height 88mm
Width 482mm
Length 516mm / 522mm
Package dimensions: 344/390(H) x 600/575(W) x 670/780(D) mm

System weight
Net Weight
S12S-J1000-G 17.6 kg ( 38.80 pounds); S12S-J1002-R 15.7kg ( 34.61 pounds )

Gross Weight
S12S-J1000-G 25.5 kg ( 56.22 pounds); S12S-J1002-R 23.6kg ( 52.03 pounds )
